Aerospace Testing

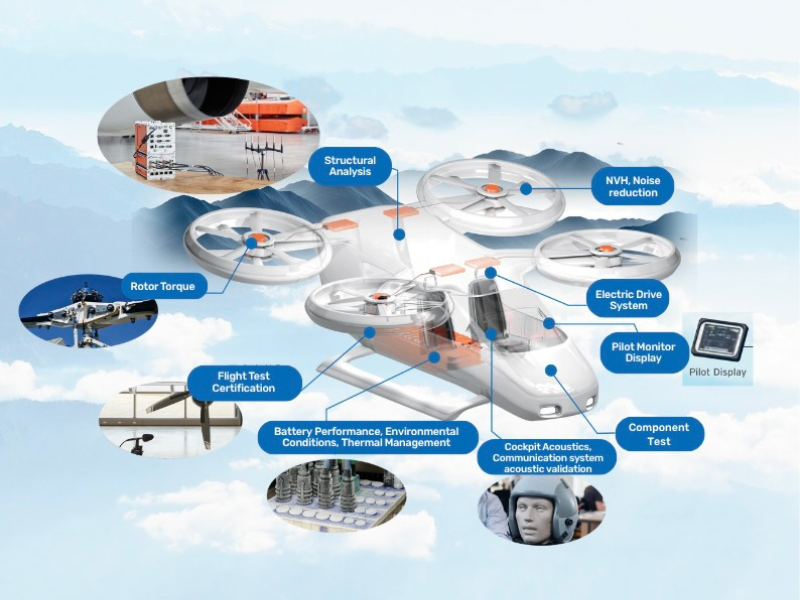

eVTOL Testing
Integrated DAQ Solutions for R&D and Certification
Testing eVTOL aircrafts involves multiple dimensions, including structural, powertrain, electrical, and acoustic aspects, and requires precise, integrated, and reliable testing solutions. The Axiometrix Solutions brands imc and GRAS offer end-to-end integrated DAQ solutions that support efficient R&D and successful certification.
Data acquisition for high-sepped rotating components
Data acquisition in harsh environments
Precise synchronized data acquisition from multiple sources
Noise characteristics and certification
Read more
Flight Test Instrumentation (FTI)
Simplicity and Maximum Flexibility in Recording and Analyzing Aircraft Parameters
In aviation, flight test instrumentation is crucial for gathering essential measurement data and parameters required for certification by aviation authorities. Diverse technologies and tools decode and interpret data during flight trials, offering a detailed overview of an aircraft's performance.
Key components include the flight recorder, analog sensor data, switching states, field bus info, and communication protocols like ARINC 429, ARINC 664, or MIL-STD-1553B from the flight control system. The flight control system manages maneuverability and stability, with flight test instruments capture data on control surface configurations, response times, and flight dynamics. Engineers use these measurements to optimize performance and safety.
An aircraft manufacturer's ‘Flight Test Instrumentation’ division uses data acquisition systems (DAS or DAQ for short) whose task is to record analogue sensor data. Such systems record several hundred to a thousand measurement channels, the most common sensors being strain gauges and sensors for measuring temperature or vibration. Force, pressure, displacement, angle and flow sensors are also used. In addition to recording the analogue signals, the digital data of the avionics system must also be recorded synchronously. To do this, digital interfaces such as ARINC or MIL-Bus must be able to be read and decoded by the DAQ system.
Aerospace ground equipment acts as an intermediary, enabling real-time communication, data stream monitoring, and seamless information exchange between the aircraft and ground operations. This facilitates reviewing and replicating flight maneuvers, enhancing test process flexibility and adaptability.
Measurement data can be stored within the flight test measurement system or on the flight test engineer's workstation, or transmitted directly to a ground station via IRIG 106 telemetry standards. Aerospace ground equipment includes a reception antenna for telemetry signals, a system for PCM data stream decoding, and the capability to route distinct measurement data to separate workstations. This integration enhances communication and monitoring, streamlining the flight testing process.
Analyse structurelle des composants (par exemple, cellules d'avion, ailes, pales de rotor, trains d'atterrissage, actionneurs, moteurs). Mesure et contrôle des déformations et des contraintes pour les bancs d'essai d'étalonnage, statiques, de fatigue et d'endurance. Mesures de déformation sur des matériaux composites Instrumentation de bancs d'essai de moteurs à turbine. Systèmes intégrés de contrôle et d'alarme des bancs d'essai automatisés.
![[Translate to French:] [Translate to English (Int.):] ardware-in-the-Loop (HiL) solutions for nose-wheel steering](/fileadmin/Public/Applications/Aerospace/Flight_test/In_Practice/Winglets-testing-wing-end-components.jpg "[Translate to French:] [Translate to English (Int.):] Winglet testing")
Hardware-in-the-Loop (HiL) solutions for nose-wheel steering, iron bird and ISTR rigs. Development testing of cargo loading systems. Integrated ATP test stands for production and quality control. Development test bed for high-lift systems. Pressure and temperature scanner interfaces for turbine engine test cells. Vibration monitoring hardware and software.
Votre avantage - notre objectif
- Nous vendons des solutions complètes, pas seulement des produits
- Un interlocuteur unique pour des solutions de mesure efficaces, tout au long du cycle d'essai.
- Anti-aliasing des entrées analogiques
- Mesure décentralisée et distribuée - efficace, flexible et fiable
- Capacité TEDS pour l'intégration automatisée des capteurs
- Acquisition de données synchrone et multicanaux
- Des résultats de mesure rapides et fiables grâce à des solutions matérielles et logicielles intégrées
- Tous les systèmes imc sont configurables par logiciel
- Support étendu des systèmes de données de bus (ARINC-429, ASCB-D, CAN etc.)
- Extensions spécifiques aux utilisateurs
