Flight Test Processor

VT-RE-17A

Multifunctional CH10 recorder, server, encoder, data link

Uplink Receiver

VT-RX-SC 2U

All band dual channel direct conversion RF receiver

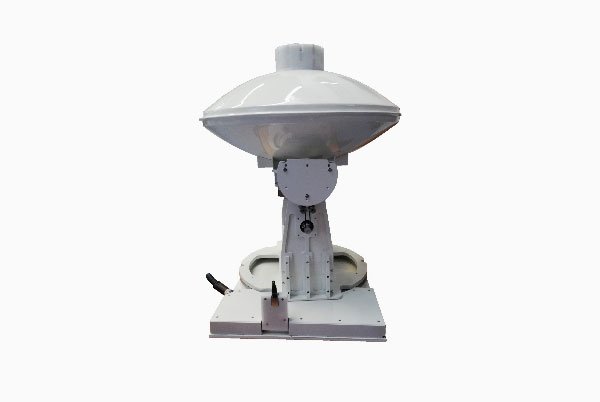

Tracking Antenna

VT-007

High gain autotracking antenna.

• Parabolic reflector 60cm with radome
• All band L, S and C Band RF Link
• Antenna Gain L-Band 17dB, S-Band 21dB, C-Band 25dB
• Dual Polarization
• Down and Uplink
• Digital Rotary Scan Head
• Dual channel tracking receivers
• Light weight composite construction

RF Receiver Recorder

VT-RX-SC 4U

Quad Channel All Band Receiver.

• Four Fully Digital Direct Conversion Receivers Per Chassis
• All Band Operation of 70MHz to 6GHz with 1KHz tuning resolution
• Predetect Combiner & Post Detection Best Source Selector
• Compact and low power design

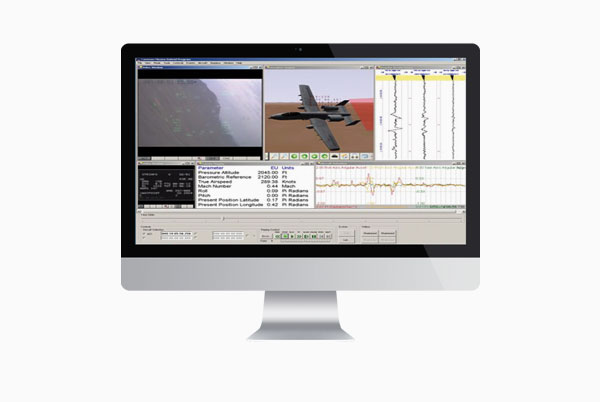

Realtime Telemetry Software

JDA VuSoft

• Simultaneous recovery, recording, display and distribution of real-time flight test & telemetry data streams
• Support of Multiple Streams in Multiple Formats
• Modular Architecture
• Records Raw and Processed Data
• Built-in IRIG106 Chapter 10 Recorder functionality
