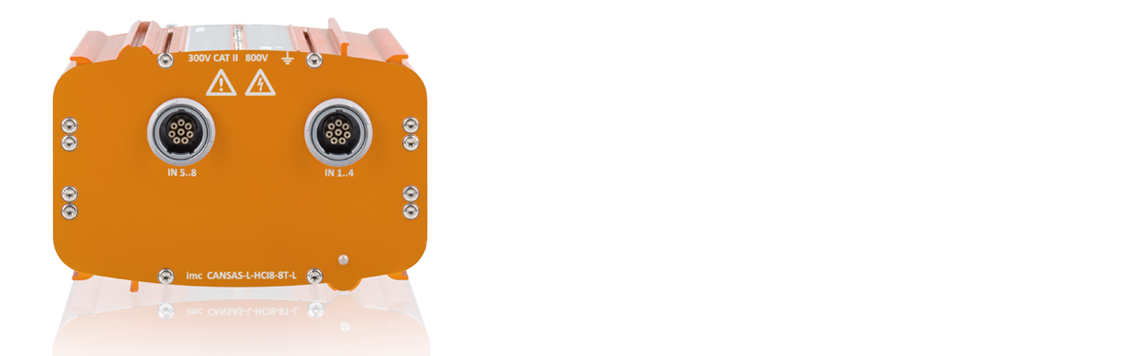

Modules CAN pour mesure de température isolée jusqu'à 800V

Les modules de mesure CAN imc CANSAS-HISO d'imc permet d'effectuer en toute sécurité des mesures précises de températures et de signaux de basse tension en présence de mode commun élevé ou indéterminé jusqu'à 800V. Les modules sont conformes aux normes de sécurité EN 61010 avec un isolement de: 800 V CAT I, 300 V CAT II.

Applications typiques :

  • Mesure de la température des composants haute tension dans les véhicules électriques et hybrides, par exemple les batteries, les piles à combustible et les circuits d'alimentation
  • Environnements dans lesquels la sécurité des personnes doit être garantie même en cas de panne
  • Peut être utilisé pour les bancs d'essai ainsi que pour les essais de conduite mobiles
  • Tant dans les réseaux de mesure décentralisés que dans les réseaux de mesure centralisés.

HV-Moduls for Thermocouples

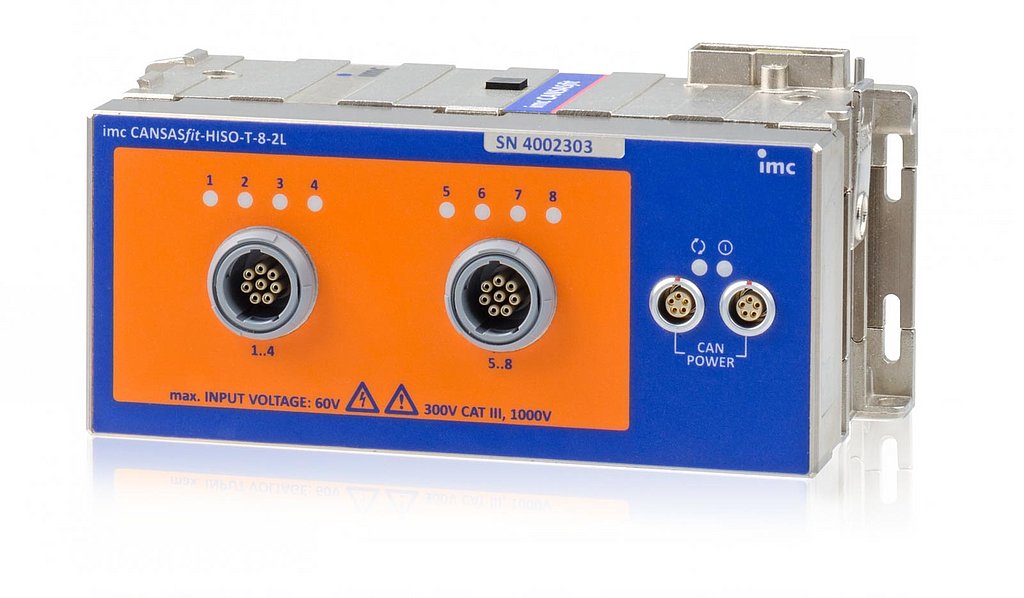

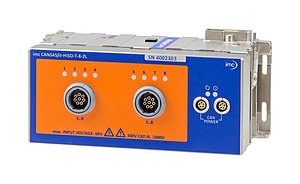

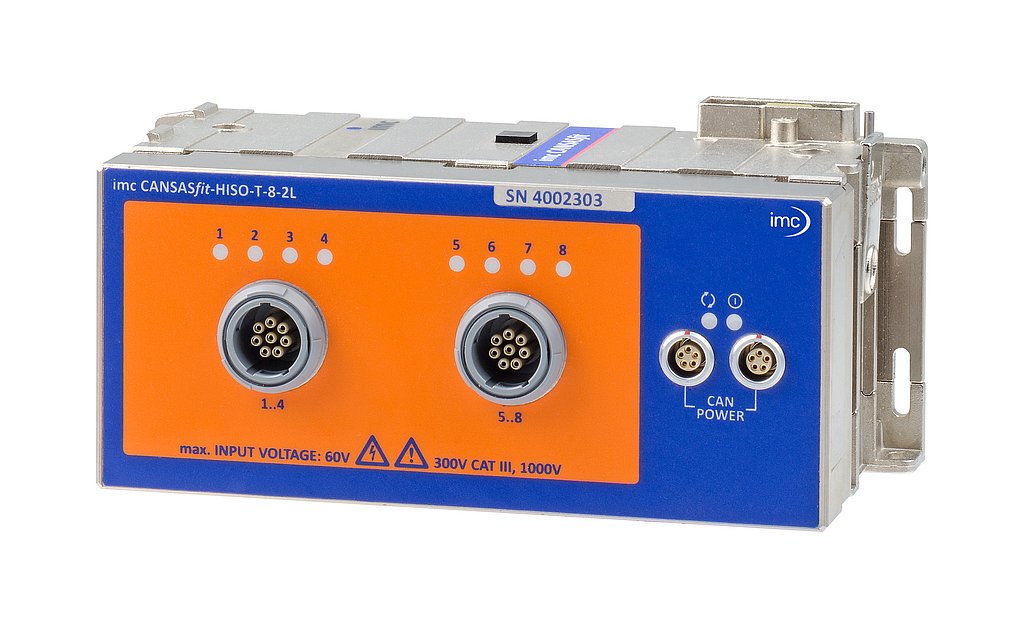

imc CANSASflex-HISO8-T

High voltage isolated CAN modules for the measurement of thermocouples

The measurement module imc CANSASflex-HISO8-T allows safe and precise measurement with 8 thermocouples (type K) which are mounted on high-voltage components with common mode voltage levels of up to 800 V. It is particularly suited for applications in the field of E-Mobility.

Highlights

  • Individually isolated measurement of temperatures (type K thermocouples) at a high common mode voltage level
  • Isolation: 800 V, 300 V CAT II (according to safety standard EN 61010)
  • Connector types: High-voltage-proof special connectors (LEMO):
    • 2x TE common plug (LEMO.2P 8-pin) or
    • 8x TE single plug (LEMO.2P 2-pin) or
  • Channel individual internal cold junction compensation

Typical applications

  • Temperature measurement on high-voltage components of hybrid and electric vehicles, such as batteries, fuel cells and supply systems.
  • Environments where personnel safety has to be ensured

HV-Modules for the measurement of PT100/1000 and low voltages

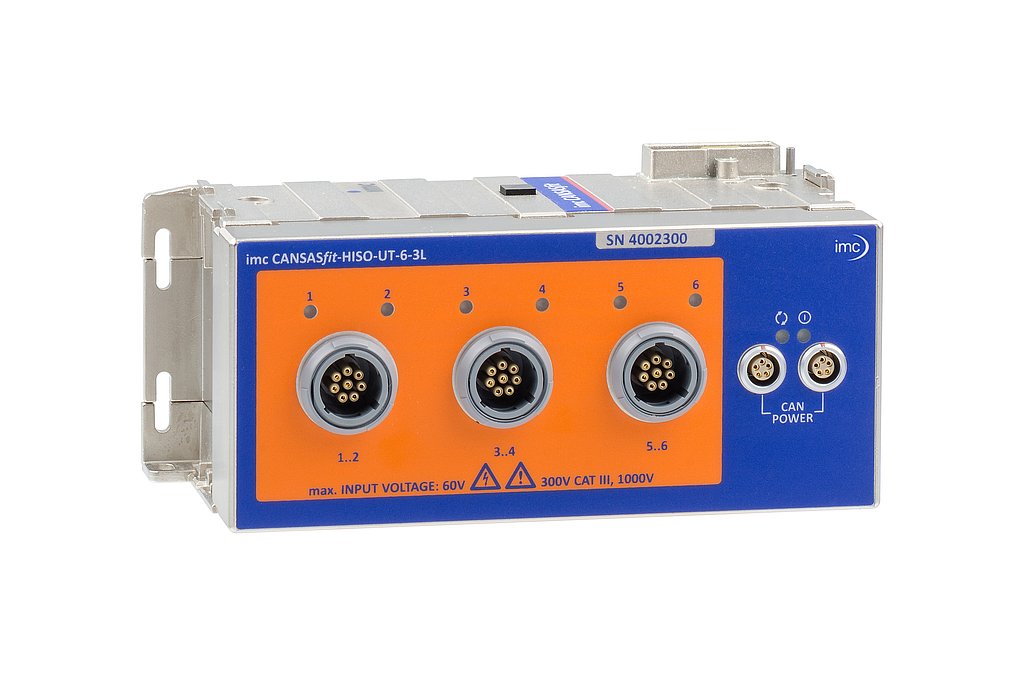

imc CANSASflex-HISO8-L

High voltage isolated CAN modules for the measurement of PT100/1000 and low voltages

The CAN-Bus measurement module imc CANSASflex-HISO8-L allows safe and precise measurement of PT100/1000, respectively low voltages, as well as differential voltages up to 100V on high-voltage components with common mode voltage levels of up to 800 V. It is particularly suited for applications in the field of E-Mobility.

Highlights

  • 8 chanels for measuring PT100/1000 or low voltages up to 100V
  • Isolation: 800 V, 300 V CAT II (according to safety standard EN 61010)
  • Connector types: High-voltage-proof special connectors (LEMO):
    • 4x PTx/voltage common plug (LEMO.2P 8-pin)
    • 8x PTx/voltage single plug (LEMO.1P 5-pin)

Typical applications

  • Temperature measurement on high-voltage components of hybrid and electric vehicles, such as batteries, fuel cells and supply systems.
  • Environments where personnel safety has to be ensured

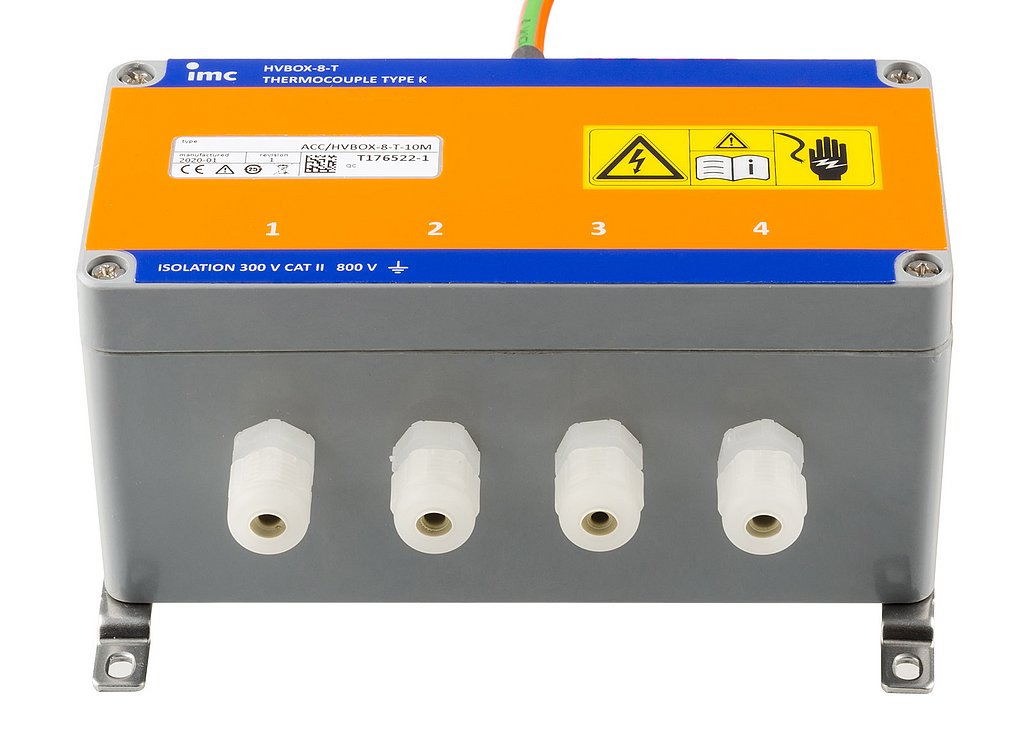

Connection box for high voltage (HV) modules

The HV connection box (HVBOX) serves as a flexible safety interface between the measuring point and the DAQ system. This allows sensors and test object instrumentation that were not originally designed to be HV-safe to be connected to the HVBOX and thus transformation to a fully HV-specified environment.

Features:

  • isolated screw terminals in polymer box
  • sensor cable entry via cable gland (PG)
  • serves as flexible and safe cabling interface to any arbitrary user cable
  • with 10 m special HV cable via LEMO.2P (Redel)
  • clear division between fully specified HV rated measurement module and connectors on one side – and custom and application specific cables and sensors on the other side
